RACINGLINE STAGE 3+ MQB CARBON CERAMIC BIG BRAKE KIT VWR651000 380mm / VWR651002 355mm
Stage 3+ MQB / MQB 'evo'
Carbon Ceramic Brake Kit
380mm or 355mm DISCS
Welcome to a global first: a Carbon Ceramic brake kit for the MQB platform. Not only is each disc close to half the weight of the small factory disc, the kit is packed with motorsport-inspired features. Astonishing stopping performance, again and again and again.
Why
upgrade?
The RacingLine Stage 3+ Carbon Ceramic Monoblock Brake Kit moves braking technology to a level above anything seen before for the MQB platform cars.
We've been intensively testing our CCM upgrade for over a year prior to launch. The result? Simply spectacular resistance to fade, dramatic weight-savings, and long-lasting durability.

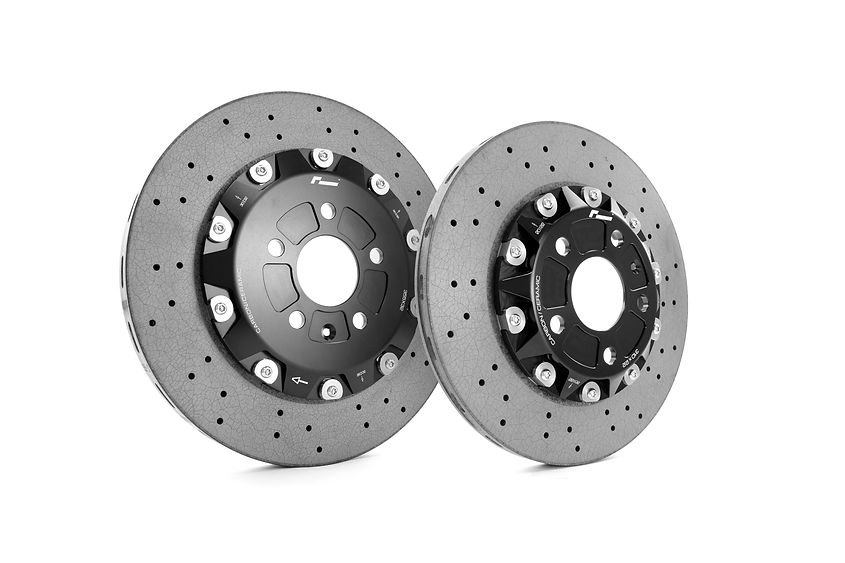

Our 355mm / 380mm rotor construction interweaves discontinuous carbon fibre to form a 3D multi-directional matrix. Which adds up to great weight savings, performance and durability versus traditional steel brakes
With over triple the heat capacity of conventional brakes, the repeatability of the stopping power is exceptional. It's braking unlike any metal rotor kit can deliver
Despite this performance capability, our Stage 3+ Carbon Kit is still perfect for daily usage, with good pedal response from cold
Each stiff, lightweight Forged Monoblock caliper starts life as a one-piece ultra-strong forged billet, exquisitely finished with a complex 5-axis CNC machining procedure
Despite the size of these discs, they weigh in at nearly half the mass of the (much smaller) factory steel ones. That's a big difference to unsprung weight
WEIGHT SAVING
The 355mm / 380mm rotor construction interweaves discontinuous carbon fibre to form a 3D multi-directional matrix. Despite their size, each disc weighs just 55% of the original factory steel rotors
CCM-SPECIFIC PADS
Due to the very different frictional and thermal properties of ceramic brakes we have provided a pad compound that has been developed specifically for use with CCM discs
FULLY-FLOATING

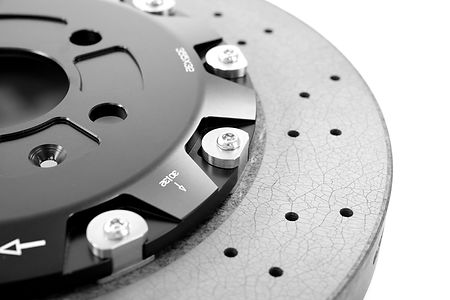

Fully floating mounting between disc and bell allow for thermal expansion and contraction to avoid cracking or warping. The anti-rattle mounts keep it quiet
MONOBLOCK
The 'Forged Monoblock' single-piece construction of our 6-piston aluminium thin-profile calipers give extreme stiffness and light weight, and aid in wheel clearance packaging
FULL INSTALL KIT
Everything you need for installation: CCM discs, calipers, mounting brackets, ceramic pads, braided steel lines. Plus the option of Hub Adaptors for extra wheel clearance. Bolt on & drive!
VWG-SPECIFIC
As our kit is engineered exclusively for MQB-platform VWG cars, we've developed piston sizes perfectly matched to master cylinders and servos for beautiful progressive pedal response
Testing, testing.
Our year-long testing programme really opened our eyes. This clip was filmed after fifty consecutive stops from 160mph/260kph - with no loss of stopping power.
WHICH
DISC SIZE?
380mm DISCS/ROTORS:
Minimum 19" wheel diameter required.
355mm DISCS/ROTORS:
Minimum 18" wheel diameter required.
GLOSS
BLACK
HARD
ANODISED
GTI
RED
SPEED
YELLOW
'R'
BLUE
PRECISION ENGINEERED FOR PERFECT PERFORMANCE
Each caliper starts life as an single-piece ultra-strong forged billet, before extensive 5-axis machining operations to finish
Specific CCM pad material gives consistent pedal response - from stone cold through to the intense heat of relentless track use
Drilled Carbon Ceramic disc material gives three times the heat conductivity of a regular disc
Fully floating mounting between disc and bell allowing free expansion and contraction with heat without cracking
Dramatic unsprung weight reduction: 5.7kg per disc vs 10.4kg for the (much smaller) factory rotor
CONFIRMED APPLICATIONS
380mm discs: Minimum 19" wheel diameter required.
Our Hub Adaptors recommended for use with factory wheels.
VWR651000 RED/BLK/ANO/CHR
> | VW Golf 8 | 2020+ |
> | VW Golf 7 & 7.5 | 2013-2020 |
> | VW Passat B8 | 2015+ |
> | VW Arteon | 2017+ |
> | VW T-Roc | 2017+ |
> | VW Tiguan II | 2016+ |
> | VW Jetta / GLI 7 | 2018+ |
> | Audi S3 8Y | 2020+ |
> | Audi A3 8Y | 2020+ |
> | Audi S3 8V | 2013-2020 |
> | Audi A3 8V | 2013-2020 |
> | Audi RS3 2.5 TFSI 8Y | 2021+ |
> | Audi RS3 2.5 TFSI 8V.2 evo | 2017-2020 |
> | Audi RS3 2.5 TFSI 8V | 2015-2017 |
> | Audi TT 3 8S | 2014+ |
> | Audi TTRS 2.5 TFSI 8S | 2017+ |
> | Audi SQ2 | 2018+ |
> | Audi Q3 | 2019+ |
> | Audi Q2 | 2017+ |
> | Audi RSQ3 F3 | 2019+ |
> | Cupra Leon IV FW | 2020+ |
> | SEAT Leon III 5F | 2015-2020 |
> | Cupra Formentor VZ5 2.5 TFSI | 2020+ |
> | Cupra Formentor | 2020+ |
> | Cupra Ateca | 2018+ |
> | SEAT Tarraco 2.0 TSI | 2018+ |
> | Skoda Octavia IV NX | 2020+ |
> | Skoda Octavia III 5E | 2014-2020 |
> | Skoda Superb III 3V | 2015+ |
*
Fitment of the Stage 3+ brake kit on 2.5 TFSI RS3 Sportback/Saloon or TTRS, requires shims between the bearing housing/upright and caliper mounting bracket to centralise the disc between the pad surfaces – failure to do so will cause caliper and rotor damage. Please check with your dealer before fitment.
SEMA GLOBAL
MEDIA AWARD WINNER
2019
ALREADY GOT OUR
STAGE 3 BRAKE KIT?
Upgrade your steel-rotor Stage 3 Brake Kit to the Stage 3+ Carbon Discs and matched pads.
PART NUMBERS:
Ceramic Discs: VWR680012 / 355mm
Ceramic Discs: VWR680013 / 380mm
Ceramic Pads: VWR6700CARBON
LOSE
WEIGHT
Saving unsprung weight is really important on a performance car. All those heavy masses on the 'road-side' of your springs - the wheels, tyres, suspension arms and of course brakes - make a massive difference to the car's responses as it turns and handles bumps in the road, differences you can really feel as a driver.
Check out the weight saving for our Carbon Ceramic discs versus our 380mm steel discs. Not to mention the difference to the small, stock factory set ups. That's a serious saving.
STAGE 3 STEEL (380mm)
STAGE 3+ CARBON (380mm)
OEM GOLF 7R / S3
DISC / ROTOR, each
CALIPER, incl pads and bracket
5.7kg / 12.57lb
5.3kg / 11.68lb
9.95kg / 21.93lb
5.3kg / 11.68lb
10.4kg / 22.88lb
8.55kg / 18.81lb
FULL BRAKE ASSEMBLY, per side
11.0kg / 24.5lb
15.25kg / 33.62lb
18.95kg / 41.69lb
OTHER PRODUCTS TO SET YOUR PULSE RACING.
STAGE 3 BRAKE KIT
Our Stage 3 Big Brake Kit uses the same beautiful monoblock 6-piston caliper as this CCM Stage 3+ kit, but with race-proven steel discs in 355 or 380mm sizes
Remove and refit your wheels all the time? Our Stud & Nut kit is a much quicker method to swap wheels for motorsport / track use.
STUD & NUT KIT
RACING BRAKE FLUID
Our Racing Brake Fluid is an essential fit with a CCM brake kit. One of highest specifications available - don't compromise your stopping power with anything less.
RACING BRAKE FLUID
Your braking system will only ever be as good as the fluid you're using.
With the heat that the Stage 3+ Carbon Kit can generate on track, our Racing Brake Fluid is an essential addition to your braking system performance. With a dry boiling point of 312 degrees centigrade, this Super DOT4 is one of the highest specification brake fluids on the market.
PART NUMBER: VWR69000BF1
