1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

Our secret for fitment on the later 'WLTP' 2020+ cars?  We have commissioned the production of our very own version of the complex one-way venturi valve that is moulded into your original Turbo Inlet.

Only by recreating this part to the OEM standard can your WLTP car continue to run properly, with no engine warning lights.



Sometimes, you just need to do the job properly!

RACINGLINE 1.0 TSI TURBO INLET VWR12UPINLET, 1.0 TSI TURBO INLET FOR WLTP CARS VWR120011
FOR VW UP GTI, POLO 1.0 TSI, GOLF 1.0 TSI. IBIZA 1.0 TSI, LEON 1.0 TSI, FABIA 1.0 TSI and more

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS
now including 2020+ post-WLTP cars.

1.0 TSI TURBO INLET

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

Breathe
free.
1.0 TSI Turbo Inlet.

Transform your breathing - with our 1.0 TSI Turbo Inlet Elbow for VW UP GTI and other 1.0 TSI cars.

Now available for the later 'WLTP' tested cars - with the first, and only, properly engineered solution on the market for these cars.

1.0 TSI TURBO INLETFOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

WHAT'S SO
SPECIAL?

Our new 1.0 TSI Turbo Inlet Elbow transforms the airflow reaching your turbocharger.

It's compatible with your factory intake box, ideally combined with our Performance Filter. It also fits with other aftermarket intakes, and is the perfect compliment to our 1.0 TSI Cold Air Intake too. It's ready to support higher power outputs and even turbo upgrades in future.

The Intake Upgrade Kit comprises a new high-flow Turbo Silicone Inlet Hose plus Turbo 90 Inlet.

Together these upgrades allow greatly increased airflow from your intake into the turbocharger for lightning fast turbo response and a worthwhile power gain.

So whether you're running a standard airbox or you've already fitted an intake system, you'll be wasting potential airflow gains without this Turbo Inlet Elbow!

1.0 TSI Turbo Inlet

COMPATIBILITY

Works in conjunction with the standard factory airbox, other aftermarket intakes and of course our RacingLine Intake

 UP GTI Turbo Inlet

POWER GAINS

Replacing the standard plastic pipe and elbow's highly restrictive airflow path through to the turbo gives a worthwhile power gain through smoothing and opening up that turn into the turbo

VW UP GTI Turbo Inlet

SIMPLE FIT

Fitting is very straightforward. The kit is installed in around 15 minutes using just hand tools.   And easily returned to standard, should you ever wish.

VW up GTI 1.0 tuning and performance modifications

Precision Engineered for
Perfect Performance.

Reinforced high quality silicone to prevent deformation under boost pressure or heat

Maximum diameter ultra smooth, high-gloss silicone with smooth transitions promotes airflow

Our own one-way venturi valve for 2020+ WLTP cars

Maximum diameter ultra-thin wall 6061-T6 aluminium, anodised gloss black

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

Enlarged and smoothed internal bore for optimised airflow

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

Pre-2019/2020 cars :  non-WLTP

VWR12UPINLET

Post 2019/2020 cars :  WLTP tested

VWR120011

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS
Confirmed applications.

Only for models fitted with the EA211 1.0 TSI engine

Make sure you select pre-WLTP, or post-WLTP when ordering:

VWR12UPINLET : pre-2019/2020

VWR120011 : post-2020, WLTP-tested  ON HOLD

>
VW Golf 7 & 7.5 1.0 TSI
2013-2020
>
VW Up! GTI
2016+
>
VW Up! 1.0 TSI
2016+
>
VW T-Roc 1.0 TSI
2017+
>
VW Polo 5 1.0 TSI 6C
2015-2018
>
VW Polo 6 1.0 TSI AW
2017-2020
>
VW Caddy 1.0 TSI
2015+
>
VW T-Cross 1.0 TSI
2017+
>
VW Touran 1.0 TSI
2018+
>
Audi A1 1.0 TSI 8X
2015-2018
>
Audi A1 1.0 TSI GB
2018-2020
>
Audi A3 1.0 TSI 8V
2016-2020
>
Audi Q2 1.0 TSI
2016+
>
SEAT Ibiza 1.0 TSI 6F
2017-2020
>
SEAT Leon III 1.0 TSI 5F
2015-2020
>
SEAT Ateca
2016+
>
SEAT Arona 1.0 TSI
2017+
>
SEAT Toledo
2017+
>
Skoda Octavia III 1.0 TSI 5E
2016-2020
>
Skoda Fabia III 1.0 TSI NJ
2015+
>
Skoda Karoq
2017+
>
Skoda Rapid
2017+
>
Skoda Kamiq
2019+
>
Skoda Scala
2019+
1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

How do I know
if my car is post-WLTP?

Dependant on your model and country, Volkswagen Group made changes to the 1.0 TSI engine to comply with the new emissions standards imposed by the WLTP testing regime from 2019/2020.

If you're not sure, it's easy to check.

Take a look under your bonnet. You are looking for the small pipe (circled in the image). If your car has this pipe, then your car is the later post-WLTP engine.


1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS

It's even easier to tell if you have an UP! GTI. The facelifted cars, from 2020 onwards all need the WLTP-modified RacingLine Turbo Elbow.

You can see from the outside. The later 'WLTP' tested cars have the new 'smooth' VW badge (right), the earlier cars have a '3D' badge (left).

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS
racingline 1.0 tsi turbo inlet for VW, Audi, SEAT, Skoda

SPOT THE DIFFERENCE?

What's the
post-WLTP difference?

The factory turbo inlet for the later 1.0 TSI cars incorporates a moulded-in one-way venturi valve to control airflow - which cannot be removed to reinstall into a high-flow turbo inlet like our RacingLine one.

The only way to resolve this engineering challenge has been for RacingLine to commission our own an all-new venturi valve. You'll get an instant engine light without it!

1.0 TSI TURBO INLET FOR VW UP! GTI, AND ALL OTHER 1.0 EA211 MODELS
VW 1.0 TSI Performance Tuning turbo inlet

To go
with it.


1.0 TSI AIR INTAKE

The ultimate cold-air intake, developed especially for 1.0 TSI in perfect harmony with this Turbo Inlet Elbow.


1.0 TSI HI-FLOW FILTER

The perfect starting point for 1.0 TSI tuning, our Trifoam Air Filter boosts efficiency with or without this Turbo Inlet Elbow.

clear 1_edited.png

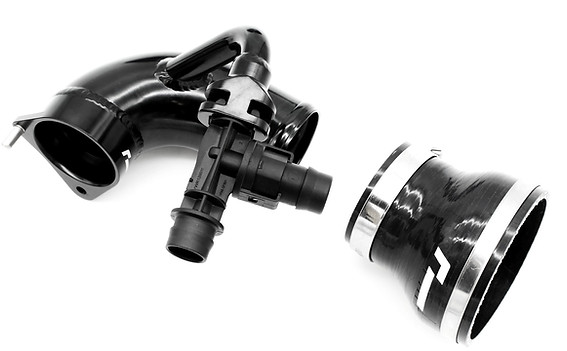

Our new one-way venturi valve for the WLTP Turbo Inlet even has our part number moulded-in.

That's attention to detail.
