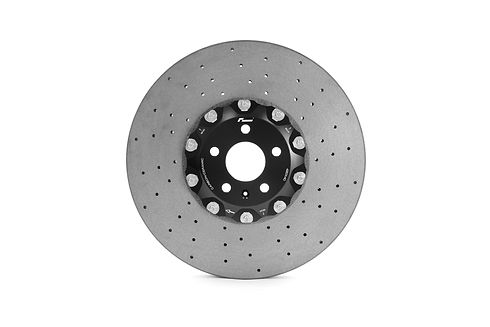

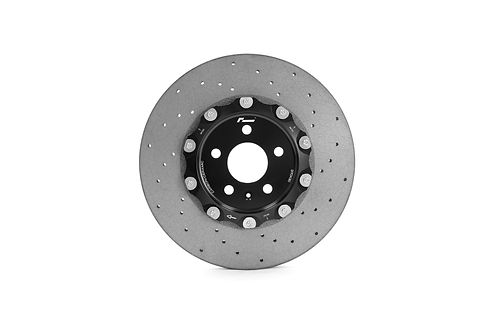

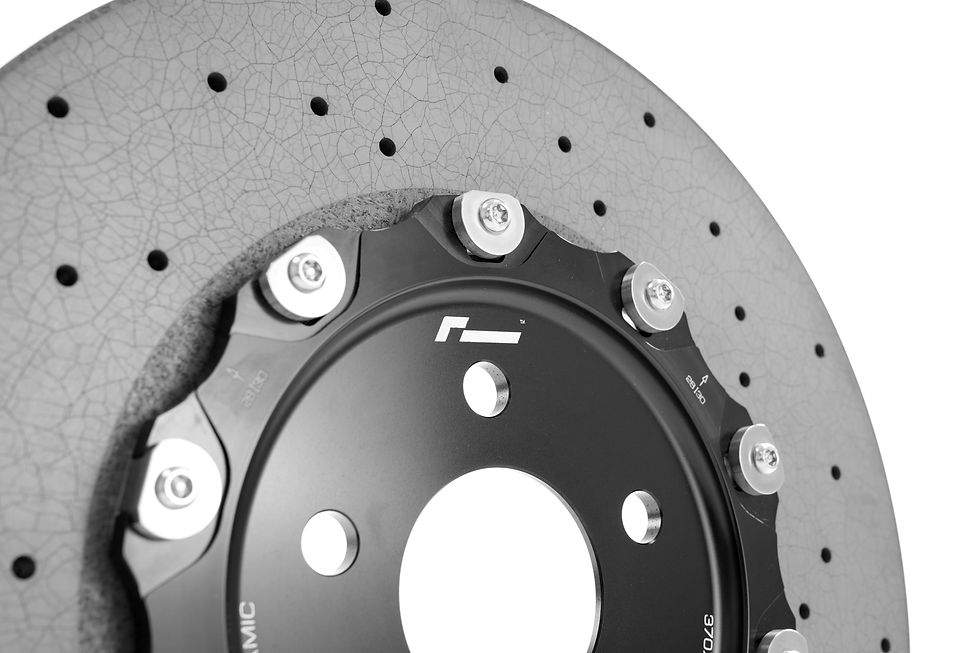

Audi RS6 / RS7 (C8)
Carbon Ceramic
Front & Rear Brake Disc/Rotor Conversion
VWR680027 / VWR680028
The best upgrade you can make to your RS6/RS7: the RacingLine Carbon Ceramic 2-piece Disc/Rotor conversion.
Replace your Audi RS6/RS7 steel brake discs with these bolt-in Carbon Ceramic replacements. A straightforward direct-swap for your factory steel discs/rotors.
Why
upgrade?
The RacingLine Carbon Ceramic Brake Disc/Rotors for the Audi RS6 & RS7 (C8 2019+) are a straightforward yet transformational upgrade to lift your car's braking ability to a whole new level.
By replacing your front and rear factory steel discs with the RacingLine Carbon Ceramics you'll finally be able to enjoy braking capability that matches your car's performance and weight.
The result? Spectacular resistance to fade, dramatic weight-savings, long-lasting durability, and minimal brake dust.
A simple, bolt in replacement for your steel factory disc/rotor set up. Simply remove the old discs, install new Audi CCM pads, then bolt on your new Carbon Ceramics
The rotor construction interweaves discontinuous carbon fibre to form a 3D multi-directional matrix. Which adds up to great weight savings, performance and durability versus traditional steel brakes
With over triple the heat capacity of conventional brakes, the repeatability of the stopping power is exceptional. It's braking unlike any metal disc/rotor can deliver

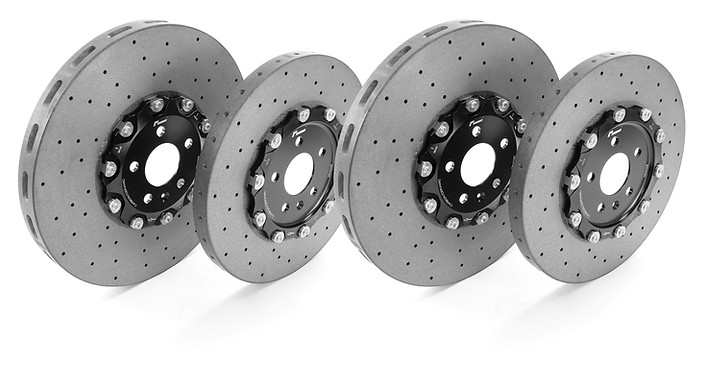

Available in front pair, and rear pair. We recommend installing both axle-sets together for optimum braking
Despite the size of these discs, they weigh in at 9.30KG (20.5lbs) vs 21.65KG (47.7lb) for the factory steel discs. That's a 57% weight reduction. That's a big difference to unsprung weight
ADVANCED MATERIAL SPECIFICATION
The mighty 420mm front, 370mm rear rotor construction interweaves discontinuous carbon fibre to form a 3D multi-directional matrix

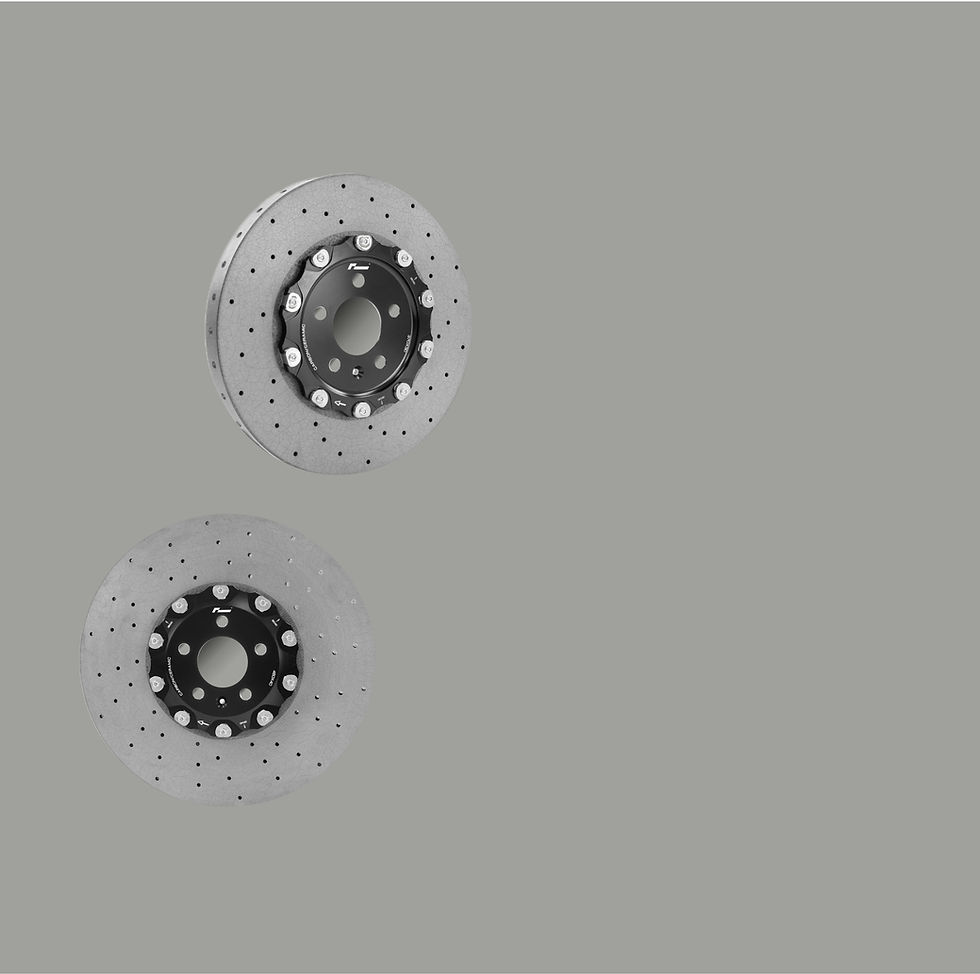

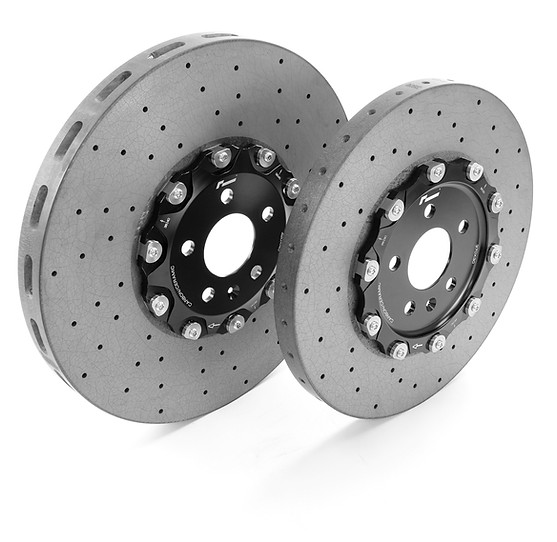

MATCHED FRONT & REAR DISCS
We offer pairs of discs - front and rear. These are perfectly matched with each other in construction and performance. We recommend replacing both axles at the same time
TWO-PIECE
CONTRUCTION
Two-piece mounting between disc and bell allowing expansion and contraction with heat without cracking or stresses
SEMA GLOBAL
MEDIA AWARD WINNER
Precision engineered for
perfect performance.
Dramatic unsprung weight reduction: 57% reduction front, 46% reduction rear versus the factory steel rotor
Drilled Carbon Ceramic disc material gives three times the heat conductivity of a regular metallic disc
Two-piece mounting between disc and bell allowing expansion and contraction with heat without cracking or stresses
We recommend installation of Audi OEM CCM brake pads - giving consistent pedal response from stone cold through to intense heat
Confirmed applications.
Direct replacement for vehicles specified with factory steel brake discs/rotors.
Not applicable for vehicles fitted with factory Audi Carbon Ceramic brakes.
VWR680027
Pair of front discs/rotors
VWR680028
Pair of rear discs/rotors
> Audi RS6 C8 2019+
> Audi RS7 C8 2019+
VWR680027
PAIR OF FRONT DISCS/ROTORS
420mm x 40mm
VWR680028
PAIR OF REAR DISCS/ROTORS
370mm x 30mm
Brake pads.
RacingLine CCM Rotors should be installed with Audi OEM Carbon Ceramic brake pads.
Part numbers as follows:
OEM Carbon Ceramic Rotor Pad Front : 4K0 698 151 AE
OEM Carbon Ceramic Rotor Pad Rear : 4M8 698 451 C
Sizes &
weights.
The RacingLine CCM Discs are dimensionally identical to the factory steel brake discs/rotors ensuring they are direct replacement fitting.
Note that these are NOT applicable for vehicles fitted with factory Audi Carbon Ceramic brakes - which are of different dimensions.
DIMENSIONS WEIGHT (CCM disc) WEIGHT (steel disc)
FRONT:
420mm x 40mm 9.30KG (20.5lbs) 21.65KG (47.7lb)
REAR:
370mm x 30mm 6.10KG (13.45lbs) 11.25KG (24.7lb)
That's a dramatic unsprung weight reduction: 57% reduction front, 46% reduction rear versus the factory steel disc.
Racing brake fluid.
Your braking system will only ever be as good as the fluid you're using.
With the heat that the Carbon Ceramic-equipped brakes can generate, our Racing Brake Fluid is an essential addition to your braking system performance. With a dry boiling point of 312 degrees centigrade, this Super DOT4 is one of the highest specification brake fluids on the market.
PART NUMBER: VWR69000BF1
